JA - Series
JA - Series balancers, equipped with one power spring, are designed specifically for Heavy Industrial Applications and therefore ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through-out work shifts.

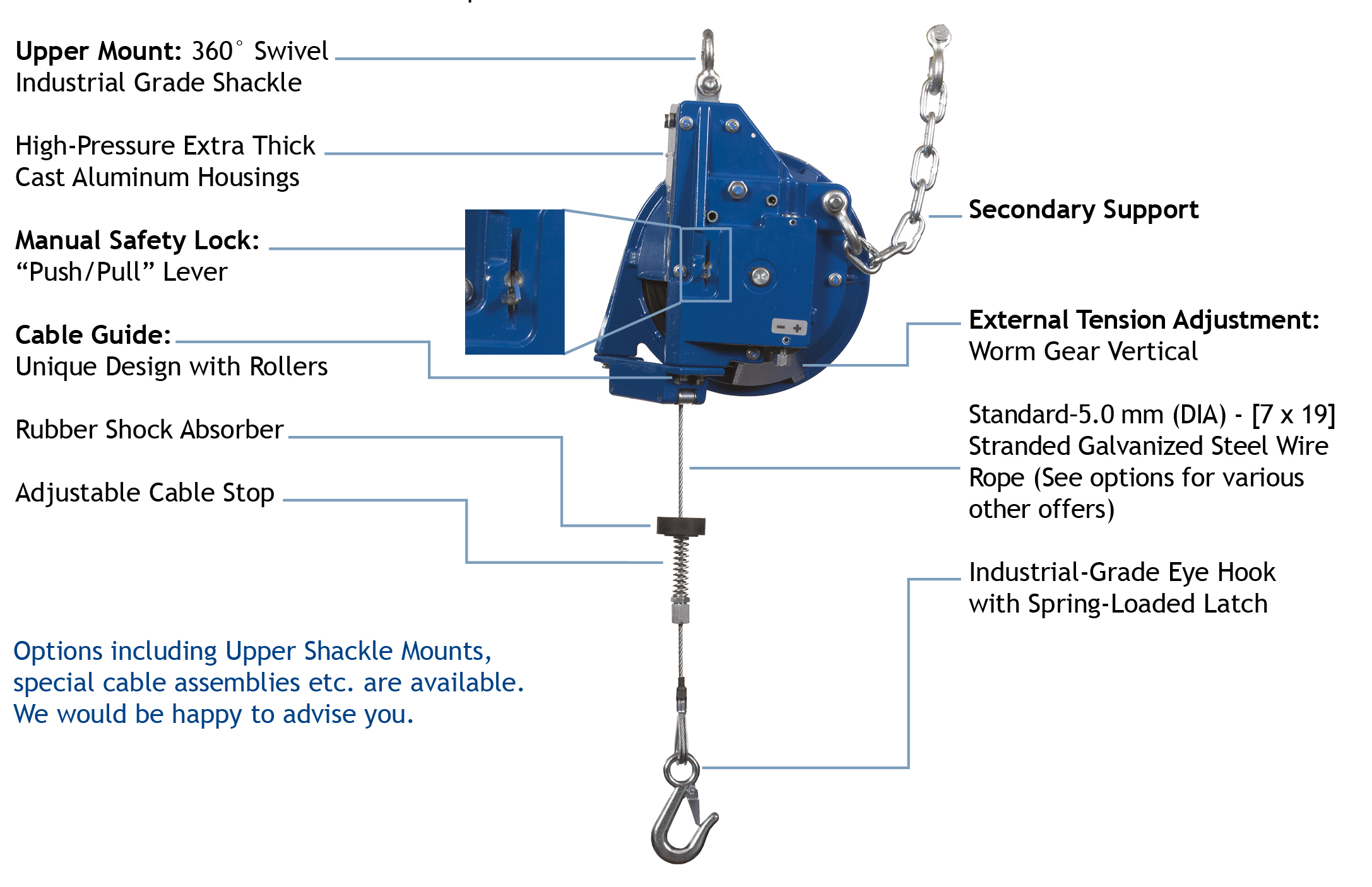

Product Features
Ordering information
Model
Reference No.
Weight Range (lb)
Weight Range (kg)
Travel (m)
Travel (ft)
Active Cable Travel
Serviceable
20JA
1301720106
6.0
to
11.0
2.1
13
to
25
7.0
2.1 m (7.0‘)
Yes
30JA
1301720157
11.0
to
16.0
2.1
24
to
35
7.0
2.1 m (7.0‘)
Yes
40JA
1301720189
13.0
to
20.0
2.1
29
to
45
7.0
2.1 m (7.0‘)
Yes
50JA
1301720199
18.0
to
25.0
2.1
40
to
55
7.0
2.1 m (7.0‘)
Yes
60JA
1301720210
25.0
to
30.0
2.1
55
to
65
7.0
2.1 m (7.0‘)
Yes
70JA
1301720221
24.0
to
32.0
2.1
53
to
70
7.0
2.1 m (7.0‘)
Yes
80JA
1301720241
24.0
to
32.0
2.1
68
to
86
7.0
2.1 m (7.0‘)
Yes
90JA
1301720296
36.0
to
41.0
2.1
79
to
90
7.0
2.1 m (7.0‘)
Yes
100JA
1301720015
40.0
to
45.0
2.1
88
to
100
7.0
2.1 m (7.0‘)
Yes
Unit Dimension Specification
Dimensions are shown in inches (and millimeters) and are for reference only.
Unit Dimension Packaging Specification
Model
Height
Width
Depth
Weight
mm
inches
mm
inches
mm
inches
kg
lb
20JA
380
15
340
13
490
19
17.5
38.0
30JA
380
15
340
13
490
19
17.5
38.0
40JA
380
15
340
13
490
19
17.5
38.0
50JA
380
15
340
13
490
19
17.5
38.0
60JA
380
15
340
13
490
19
17.5
38.0
70JA
380
15
340
13
490
19
17.5
38.0
80JA
380
15
340
13
490
19
17.5
38.0
90JA
380
15
340
13
490
19
17.5
38.0
100JA
380
15
340
13
490
19
17.5
38.0
Please note: Specifications for reference only [±10 %]. Subject to change without notice.
In need of Repair Kits or Customized Solutions?
Our products have been designed with longevity in mind. If you need a specific repair part, you can contact us at any time. We will help you to get back up and running as quickly as possible.
If you want to customize your Aero-Motive® products, e.g. choose a different housing color or labeling, contact us and we will discuss your request with you.
