FLS & FLSR - Series
Aero-Motive® 10/22FLS and 10/22FLSR retractors offer the exact same performance as 10/22F and 10/22FLR, but are equipped with Automatic Safety Lock. These retractors meet DIN15112 standards, which require arresting a load in place should the unit lose tension or in the event of a power spring failure.

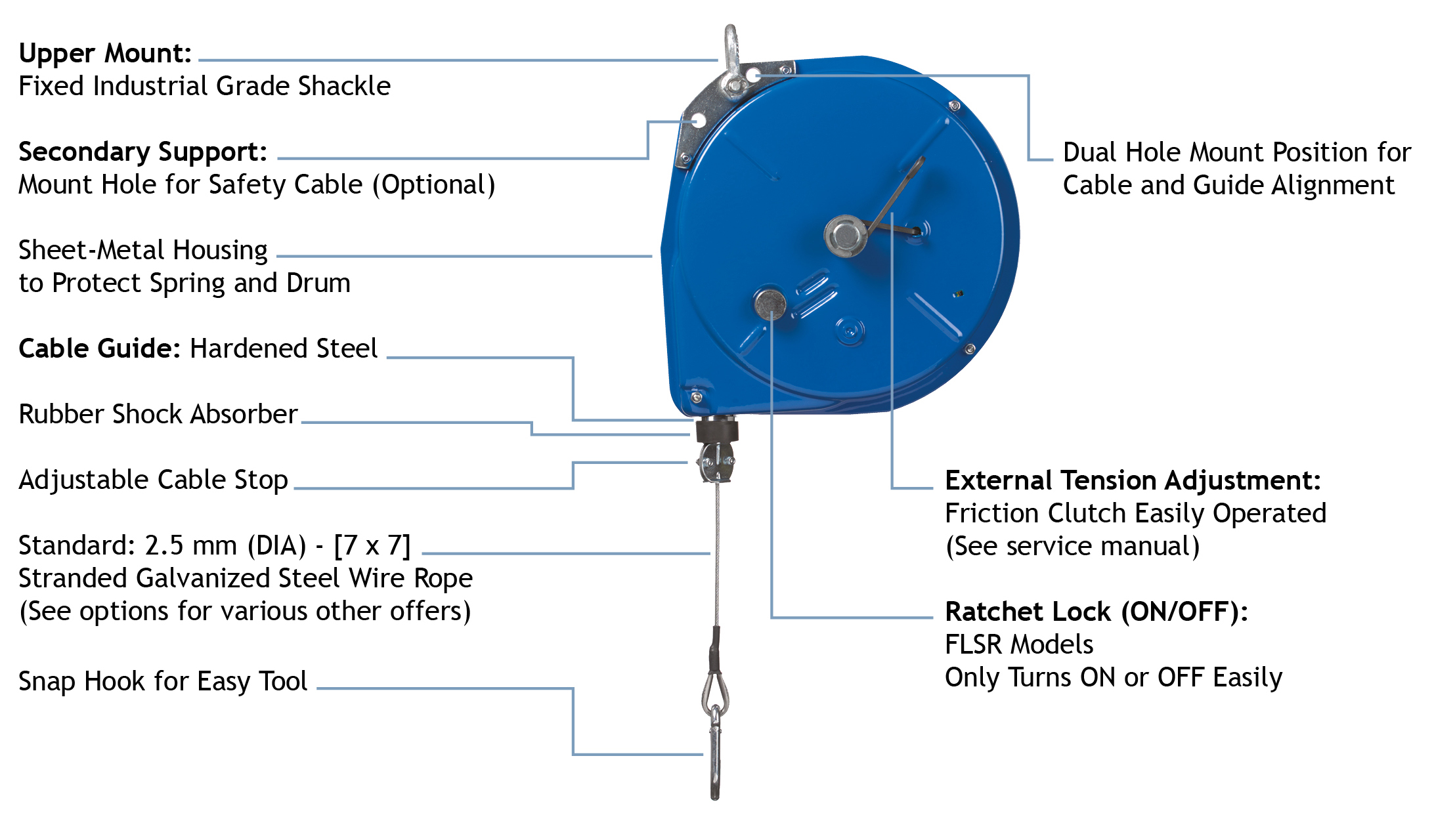

Product Features
Ordering information
Model
Reference No.
Weight Range (lb)
Weight Range (kg)
Travel (m)
Travel (ft)
Active Cable Travel
Serviceable
10FLS
1301750062
1.8
to
4.5
2.4
4.0
to
10.0
8.0
2.4 m (8.0’)
Yes
22FLS
1301750063
3.6
to
10.0
2.4
8.0
to
22.0
8.0
2.4 m (8.0’)
Yes
10FLSR
1301750064
1.8
to
4.5
2.4
4.0
to
10.0
8.0
2.4 m (8.0’)
Yes
22FLSR
1301750065
3.6
to
10.0
2.4
8.0
to
22.0
8.0
2.4 m (8.0’)
Yes
Unit Dimension Specification
Dimensions are shown in inches (and millimeters) and are for reference only.
Unit Dimension Packaging Specification
Model
Height
Width
Depth
Weight
mm
inches
mm
inches
mm
inches
kg
lb
10FLS
165
7
286
11
300
12
4.5
10.0
22FLS
165
7
286
11
300
12
4.5
10.0
10FLSR
165
7
286
11
300
12
4.5
10.0
22FLSR
165
7
286
11
300
12
4.5
10.0
Please note: Specifications for reference only [±10 %]. Subject to change without notice.
In need of Repair Kits or Customized Solutions?
Our products have been designed with longevity in mind. If you need a specific repair part, you can contact us at any time. We will help you to get back up and running as quickly as possible.
If you want to customize your Aero-Motive® products, e.g. choose a different housing color or labeling, contact us and we will discuss your request with you.
