FLRC - Series
Aero-Motive® FLRC - Series retractors are built tough to be able to withstand the harshest environments within the general assembly area. These retractors work in heavy industrial-duty environments and are exposed to high-impact collisions with other larger sized products mounted on the same assembly rails.
Product Features
Ordering information
Model
Reference No.
Weight Range (lb)
Weight Range (kg)
Travel (m)
Travel (ft)
Active Cable Travel
Serviceable
5FLRC
1301740014
0.8
to
3.2
2.4
1.0
to
7.0
8.0
2.4 m (8.0‘)
Yes
10FLRC
1301740001
1.8
to
4.5
2.4
4.0
to
10.0
8.0
2.4 m (8.0‘)
Yes
22FLRC
1301740009
3.6
to
10.0
2.4
8.0
to
22.0
8.0
2.4 m (8.0‘)
Yes

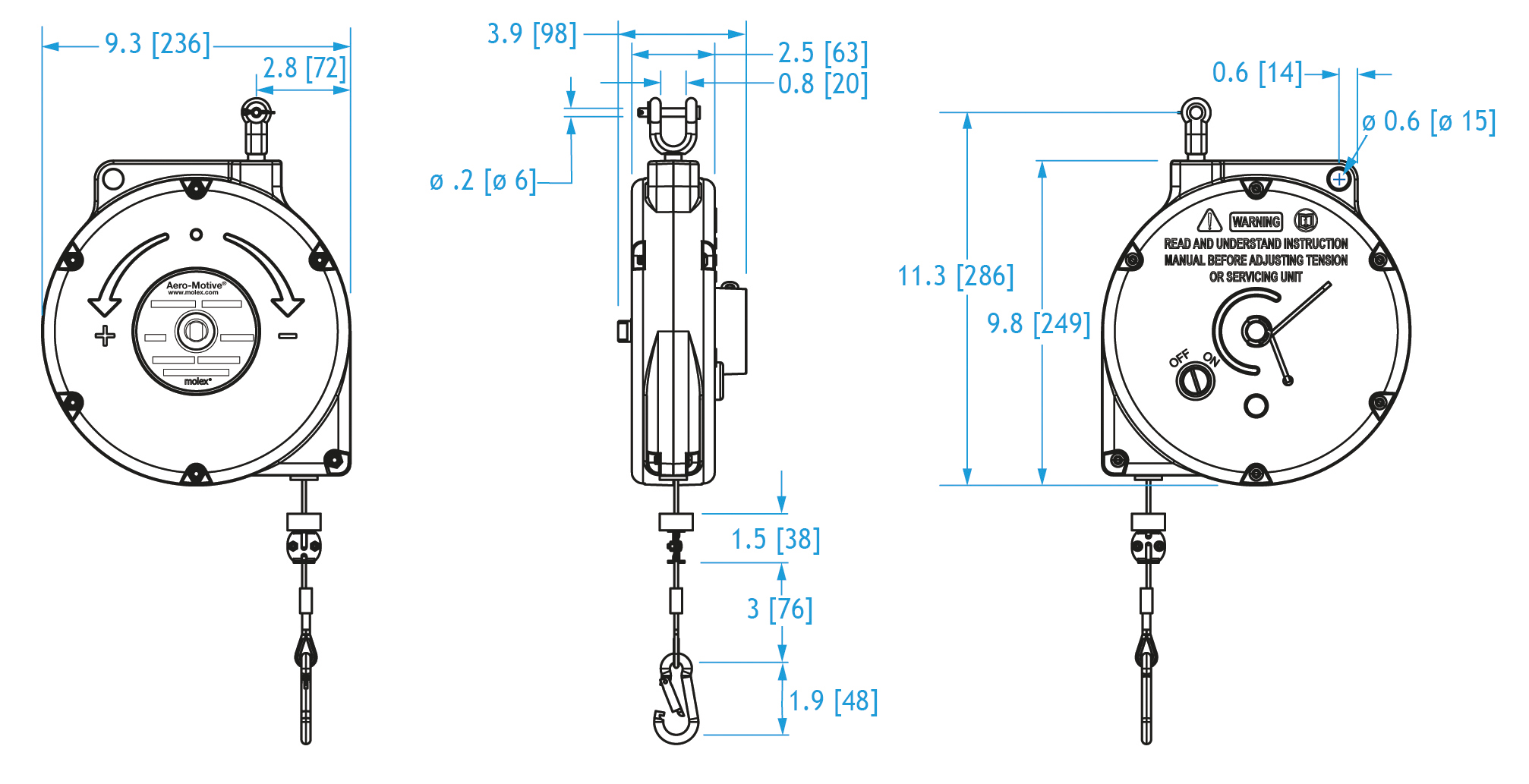

Unit Dimension Specification
Dimensions are shown in inches (and millimeters) and are for reference only.
Unit Dimension Packaging Specification
Model
Height
Width
Depth
Weight
mm
inches
mm
inches
mm
inches
kg
lb
5FLRC
305
12
330
13
210
8
5.9
13.0
10FLRC
305
12
330
13
210
8
5.9
13.0
22FLRC
305
12
330
13
210
8
5.9
13.0
Please note: Specifications for reference only [±10 %]. Subject to change without notice.
In need of Repair Kits or Customized Solutions?
Our products have been designed with longevity in mind. If you need a specific repair part, you can contact us at any time. We will help you to get back up and running as quickly as possible.
If you want to customize your Aero-Motive® products, e.g. choose a different housing color or labeling, contact us and we will discuss your request with you.
